In-Line Load Cells
In-Line Load Cells

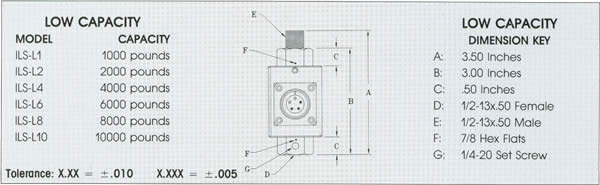

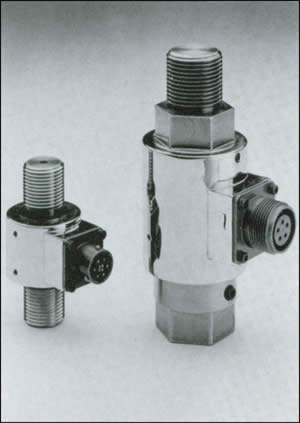

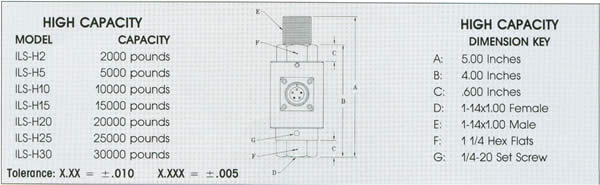

Helm In-Line load cells incorporate strain gages for direct measurement of any force transmitted through the longitudinal axis. The male and female threads at each end allow connection and measurement of both and compression forces. Capacities range from 1,000 to 30,000 pounds.
| Excitation Voltage: | 5-15 Volts DC | ||||||||||
| Output Voltage: | 2mv/volt nominal | ||||||||||
| Bridge Resistance: | 175 ohms | ||||||||||
| Material: | 17-4PH Stainless | ||||||||||
| Loading Surfaces: | Precision Ground Flat and Parallel | ||||||||||
| Overload Rating: | 125% | ||||||||||
| Temperature Range: | 60 to 200 Degrees F | ||||||||||
| Linearity/Hysterisis: | ±0.50% Full Scale | ||||||||||
| Repeatability: | ±0.25% Full Scale | ||||||||||
| Connector: | Amphenol 5 pin (97-3102A-14S) | ||||||||||
| Interconnect Cable: | Four conductor shielded (15 foot length) with 16 foot armor type sleeve (0.28 diameter) | ||||||||||
| Wiring Code: | Compression
|
