5034-HM-PLM is a 2-Channel Peak Tonnage Module
5034-HM-PLM is a 2-Channel Peak Tonnage Module

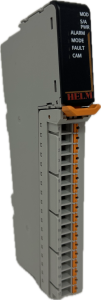

The 5034-HM-PLM is a 2-Channel Peak Tonnage Module that provides accurate and reliable measurements, featuring capacity and trend alarms. Using strain gauge input, the HM5034-PLM module internally amplifies and conditions incoming signals, ensuring stable peak force measurement. Integration is simple using the included AOP to enable fast and straight forward setup. The 5034-HM-PLM is the perfect solution for your stamping, forging, die cast, and assembly applications.- 2 Independent Channels
- Capacity and Trend Alarms
- Internal Amplification and Signal Conditioning
- Accepts Industry Standard Strain Gauges
- Enhanced with an Add-on Profile (AOP)
- Reverse Load Measurement
- Built-In Auto Zero Balance
HM5034-PLM Specifications
|
Channels Per Module |
2 Independent Channels |
|
Type of Input |
Strain Gage (350 ohm, 700 ohm) |
|
Tare |
Built-in Tare Function |
|
Zero Balance |
Automatic |
|
Alarm Types |
Capacity, Trend |
|
Module Update Time |
Software Selectable 1ms to 100ms[a] |
|
Calibration |
Software Selectable |
|
ADC Resolution |
18 Bit[b] |
|
Excitation Type |
Internal |
|
Excitation voltage |
10 V[c] |
|
Input Impedance |
2 GΩ[d] |
|
Display Resolution |
0.1%[e] |
|
Overall Module Accuracy |
0.05%[f] |
|
S/A Voltage |
24 V |
|
S/A Current Draw |
120 mA |
|
Operating Temperature Range |
-25°C to +60°C (-13°F to 140°[g]F) |
|
Operating Shock |
EN 60068-2-27 (30 g peak) * |
|
Nonoperating shock |
EN 60068-2-27 (50 g peak) * |
|
Vibration |
EN 60068-2-6 (10-500Hz @ 5 g) * |
|
Corrosive Resistance Classification |
ISA-71.04-2013 G1 * |
|
Dimensions (HxWxD) |
4.8”(122mm) x 0.6”(15mm) x 2.4”(60mm)[h] |
|
Certifications |
UL/cUL Listed*, CE * |
